Premier Cast Iron Soil (BS 416)

traditional black bitumen coated LCC soil system



Hargreaves Premier LCC is manufactured to BS 416 and provides a comprehensive offering of traditional socket & spigot pipe and fittings for above ground soil & waste.


The system is joined using the traditional caulking cord and sealant method. Premier Soil is the ideal solution for conservation and heritage projects

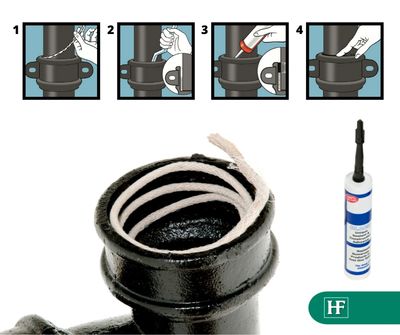

installation

  •  1. Centrally align the pipe spigot within the socket and wet the caulking cord


  • 2. Caulk the wet cord into the socket up to 30mm from the top using a caulking iron (or anything similar!) This centralises the pipe and provides a backing for the sealant.


  • 3. Fill the top 30mm of the socket with black joint sealant - We recommend CT-1 Sealant (HF Part No. S0007)


  • 4. Once filled, smooth the sealant level with the top of the socket to provide a neat appearance & seal the joint.

LCC SOIL Downloads

Premier Paint Guide (pdf)

Download

CT-1 Sealant MSDS (pdf)

Download
